Bridge Inspections
STATEWIDE BRIDGE INSPECION SERVICES
Rhode Island
CLIENT/REFERENCE: AECOM TRANSPORTATION, 10 Orms Street, Providence, Rhode Island
COMPLETION DATE: Ongoing
Commonwealth Engineers & Consultants, Inc. teamed up with AECOM in 2005 to provide bridge inspections throughout the State of Rhode Island and update the National Bridge Inventory (NBI) in accordance with the National Bridge Inventory Standards (NBIS) for the Rhode Island Department of Transportation (RIDOT).
The types of inspections have included Inventory, Routine, Damage, In-Depth and Special Inspections for all types of bridges including steel stringer, truss bridges, reinforced concrete, arch structures, and pre-stressed concrete bridges. AASHTO, FHWA and NHI Standards have been employed in the inspection process.
The AECOM/CE&C team continues to perform these inspections to present day.
NEWPORT / PELL BRIDGE
Newport / Jamestown, Rhode Island
CLIENT/REFERENCE: PB AMERICAS, One Penn Plaza, 250 West 24th Street, New York, NY 10119
COMPLETION DATE: November 2009 / June 2010
Commonwealth Engineers & Consultants, Inc. teamed up with PB Americas in 2009 and 2010 for the Biennial Inspection of the Newport / Pell Bridge over the East Passage of Narragansett Bay connecting Newport and Jamestown, Rhode Island.
The inspection consisted of the routine biennial inspection of the deck truss, plate girder, and steel multi-stringer spans, for a total of nearly 6300 linear feet of inspection length.
Based on the inspection findings, reports were prepared by PB Americas, and submitted to the Rhode Island Turnpike and Bridge Authority (RITBA) outlining the inspection findings along with long and short term repair alternatives.
BROAD STREET BRIDGE
Special Damage Inspection
CLIENT/REFERENCE: RI Department of Transportation

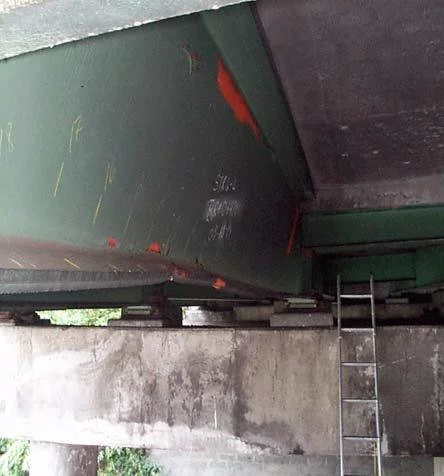

Commonwealth Engineers & Consultants, Inc. was retained to provide in depth special damage member inspection of steel stringer beams struck by a truck.
Impact occurred at a point approximately 13 feet from the end support where the bottom flange displaced laterally approximately 13.5 inches from its original alignment. The girder web was bent, beginning approximately at mid depth of the bearing stiffener at the end support,
extending up to a point several inches from and along the top flange, and back down to approximately mid depth at the first intermediate diaphragm. The total length of the girder affected by the impact extended approximately 28 feet from the end support.
Based on the data collected from our field inspection CE&C prepared a structural evaluation, assed the damage, investigated possible repair schemes, and provided appropriate recommendations for repair and/or replacement. Two repair alternatives consisting of heat straightening and beam replacement were investigated. Each repair alternative was evaluated with respect to feasibility, economics, and construction duration. CE&C prepared a final report, recommending the girder be repaired by heat straightening.
JAMESTOWN VERRAZZANO BRIDGE
Jamestown, Rhode Island
CLIENT/REFERENCE: PB AMERICAS, One Penn Plaza, 250 West 24th Street, New York, NY 10119
Commonwealth Engineers & Consultants, Inc. teamed up with PB Americas in 2006 for the Biennial Inspection of the Jamestown Verrazzano Bridge structure over the Narragansett Bay connecting Jamestown and Narragansett in Rhode Island.
The inspection consisted of the routine biennial inspection of both the main span segmental box structure and the trestle approach spans. CE&C was responsible for the inspection of the trestle spans.
Based on the complete inspection and testing program, a report was prepared, and submitted to the Rhode Island Department of Transportation (RIDOT) outlining the inspection findings along with long and short term repair alternatives.
